Ultimate Guide to Real-Time Location Systems (RTLS) in 2026: Technologies, Architecture & Industrial Use Cases

Real-Time Location Systems (RTLS) have evolved from niche tracking solutions into the backbone of modern Smart Factories, Healthcare Facilities, and Supply Chain Logistics. Whether optimizing asset utilization, improving workplace safety, or automating inventory tracking, selecting the right RTLS technology stack is critical for high-ROI deployments.

This comprehensive guide breaks down RTLS technology architectures, compares primary wireless protocols (UWB, BLE, Wi-Fi, RFID), and outlines actionable deployment strategies for industrial application.

What is Real-Time Location System (RTLS)?

A Real-Time Location System (RTLS) is an integrated solution of hardware and software used to automatically identify and track the precise location of assets, personnel, or equipment in real time, typically within indoor or confined environments.

Unlike traditional GPS, which struggles with signal attenuation inside building structures, RTLS utilizes localized wireless signals—such as Ultra-Wideband (UWB) or Bluetooth Low Energy (BLE)—to determine physical coordinates with accuracy ranging from several meters down to a few centimeters.

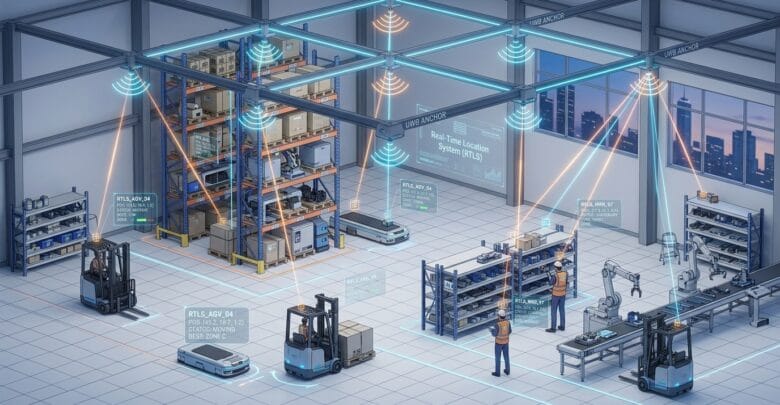

Core System Architecture of RTLS

An enterprise-grade RTLS relies on four fundamental infrastructure layers:

[ Tracked Asset / Tag ]
        │ (Wireless Signal: UWB / BLE / Wi-Fi)
        ▼
[ Fixed Anchors / Receivers ]
        │ (Ethernet / MQTT / CoAP)
        ▼
[ Location Engine / Server ]
        │ (API / REST / WebSockets)
        ▼
[ End-User Application / Dashboard ]

1. RTLS Tags (Transmitters): Battery-powered micro-devices attached to assets, vehicles, or worn by staff. They periodically broadcast signals containing unique IDs and telemetry data.
2. Anchors / Readers (Receivers): Fixed wireless devices mounted at known physical coordinates that detect tag signals and measure time, angle, or signal strength parameters.
3. Location Engine (Middleware): Centralized software running positioning algorithms (such as TDoA, ToF, or AoA) to calculate exact X, Y, Z coordinates.
4. Application & Analytics Layer: Dashboards, ERP/MES integrations, and geofencing engines that visualize movement data and trigger automated workflow alerts.

Primary RTLS Technologies Compared

Selecting the ideal RTLS technology requires balancing location accuracy against deployment costs and power consumption constraints.

Key Positioning Methods Explained

Modern RTLS location engines use three principal mathematical techniques to resolve spatial positioning:

1. Time Difference of Arrival (TDoA)

TDoA measures the difference in time it takes for a tag’s signal to reach multiple fixed anchors. Because radio signals travel at the speed of light, precise nanosecond-level time synchronization across anchors allows the location engine to calculate exact coordinates using hyperbolic positioning. TDoA is the core mechanism behind high-precision UWB systems.

2. Angle of Arrival (AoA)

AoA relies on multi-antenna arrays within receivers. When a tag broadcasts a signal, the phase difference of the arriving wave across individual array antennas allows the reader to calculate the precise angle of origin. Combined with height data or multiple array intersections, AoA delivers sub-meter accuracy using low-power BLE tags.

3. Received Signal Strength Indicator (RSSI)

RSSI estimates distance based on signal power degradation over distance. While cost-effective and supported by all standard Wi-Fi and Bluetooth hardware, RSSI is highly susceptible to RF multipath interference and signal attenuation caused by walls or metallic obstacles.

High-Value Industrial Applications of RTLS

1. Smart Manufacturing & Assembly Lines

• Tool and Jig Tracking: Ensure high-value calibrated tools are present at correct assembly stations prior to execution.
• WIP (Work-in-Progress) Monitoring: Track sub-assemblies through production stages to identify operational bottlenecks automatically.

2. RTLS for Manufacturing & Warehouse Logistics

• Automated Inventory Auditing: Eliminate manual scanning by updating item locations instantaneously as materials travel through storage zones.
• Forklift Collision Avoidance: Implement geofencing alerts around pedestrian pathways to trigger dynamic speed restrictions on heavy machinery.

3. Healthcare Facilities & Staff Safety

• Asset Tracking for Medical Devices: Reduce time spent searching for infusion pumps, beds, and diagnostic equipment.
• Duress Alarms: Enable staff to trigger real-time panic alarms that instantly map exact physical location during emergencies.

4-Step Checklist for Implementing an RTLS Network

1. Define Accuracy Requirements: Differentiate between sub-meter precision (tool placement) and zone-level presence (room occupation) to avoid infrastructure over-provisioning.
2. Conduct an RF Site Survey: Identify metallic interference, concrete walls, and existing wireless traffic to optimize anchor layout and power delivery (PoE).
3. Evaluate Integration Capabilities: Ensure the location middleware supports standard open APIs (REST, WebSockets, MQTT) for seamless connection to existing ERP, WMS, or IoT networks.
4. Plan for Scalability & Tag Maintenance: Factor in tag form-factors, battery replacement cycles, and firmware-over-the-air (FOTA) update support.

FAQ Section

Q1: What is the main difference between GPS and RTLS?

GPS relies on satellite line-of-sight and is designed for outdoor navigation. RTLS uses local indoor anchor networks to deliver high-precision tracking inside buildings where satellite signals cannot penetrate.

Q2: Which RTLS technology offers the highest accuracy?

Ultra-Wideband (UWB) delivers the highest precision, achieving accuracy down to 10–30 centimeters in real-time applications.

Q3: Can RTLS integrate with existing MQTT or Node-RED workflows?

Yes. Modern RTLS location engines publish real-time X, Y, Z coordinates via MQTT topics or REST endpoints, allowing rapid integration into custom dashboard platforms or edge-automation systems.
