Walk into almost any industrial facility built in the last four decades. Somewhere in its control system, Modbus is quietly moving data between devices. It’s one of the oldest industrial communication protocols still in active use. Yet it remains one of the most widely deployed — not because nothing better exists, but because it’s simple, reliable, and deeply embedded in industrial equipment. Replacing it often isn’t worth the cost or disruption.
This guide covers what Modbus is, how it actually works, and why it’s still relevant in an era of far more sophisticated industrial protocols.
What Is Modbus?

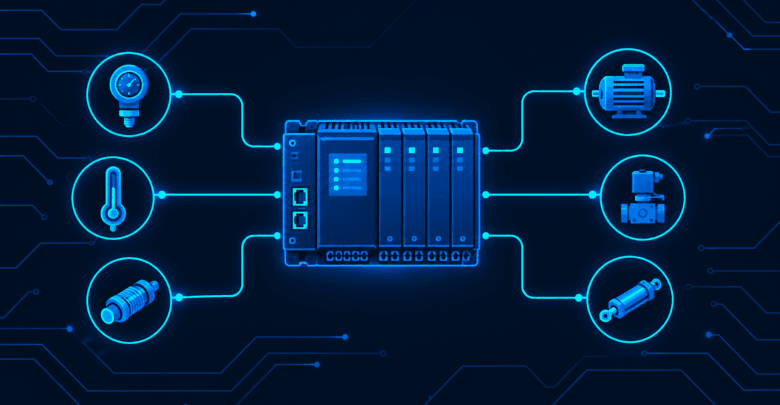

Engineers originally developed Modbus in 1979 to connect industrial electronic devices. It allows a controller, like a PLC (covered in our industrial automation guide), to exchange data with sensors, actuators, and other field devices. The designers built it to work on the limited computing hardware available at the time. This simplicity turned out to be one of its greatest long-term strengths.
How Modbus Works
The Master-Slave (Client-Server) Model
Modbus operates on a request-response model. Traditionally, engineers described this using “master” and “slave” terminology, increasingly replaced with “client” and “server” in modern documentation. A master device sends a request to a specific slave device. The slave then responds with the requested data or confirms an action. Slaves never initiate communication on their own. Instead, they only respond when a master queries them.
Registers: How Modbus Organizes Data
Modbus organizes data into a small number of standardized data types, called registers:
- Coils — single-bit (on/off) values, typically representing digital outputs like a relay or a motor start signal.
- Discrete Inputs — single-bit values representing digital inputs, like a switch or sensor status.
- Holding Registers — 16-bit values that can be read and written, commonly used for configuration values or setpoints.
- Input Registers — 16-bit values that are read-only, commonly used for sensor readings like temperature or pressure.
Each register carries a numbered address. A master device reads or writes to these addresses to exchange data with a slave device.
Function Codes
Modbus communication uses standardized function codes. These codes specify what operation a message requests — reading coils, writing to a holding register, reading input registers, and so on. This standardization explains much of Modbus’s broad compatibility across different manufacturers’ equipment. As long as a device implements the standard function codes correctly, it can talk to any other compliant Modbus device, regardless of manufacturer.
Modbus Variants
Modbus RTU
The original variant runs over serial connections, typically RS-232 or RS-485. It transmits data in a compact binary format. Engineers still widely use Modbus RTU today, particularly in simpler, cost-sensitive industrial installations where devices connect over relatively short distances on a shared serial bus.
Modbus ASCII
A less common variant transmits data as readable ASCII characters rather than binary. This makes it easier to debug by reading raw traffic. However, it’s less efficient than RTU due to the larger data size.
Modbus TCP
This version of Modbus runs over standard Ethernet networks using TCP/IP. As a result, Modbus devices can communicate over conventional network infrastructure rather than requiring dedicated serial wiring. Modbus TCP has become increasingly common as industrial facilities adopt Ethernet-based networking more broadly. It also plays well with the industrial Ethernet and edge computing approaches increasingly common in modern IIoT deployments.
Why Modbus Has Survived for Over Four Decades
Simplicity
Modbus’s data model and function codes stay straightforward. Implementing a compliant device doesn’t require significant engineering resources. This lowered the barrier to adoption for equipment manufacturers from the start.
Open and Royalty-Free
Unlike some competing protocols that required licensing fees or proprietary hardware, Modbus has always been open and free to implement. Consequently, it encouraged widespread adoption across the industrial equipment industry.
Massive Installed Base
Decades of adoption mean an enormous amount of existing industrial equipment already speaks Modbus. Replacing all of it with a newer protocol would require significant capital investment for often marginal operational benefit. So Modbus persists simply because ripping it out rarely makes economic sense.
Good Enough for Many Applications
Many industrial applications don’t need the more sophisticated features of newer protocols. Modbus’s straightforward read/write model handles a large share of real-world industrial communication needs perfectly well.
Limitations of Modbus
No Built-In Security
Engineers designed Modbus in an era when industrial networks were assumed to be physically isolated. As a result, the protocol includes no built-in authentication or encryption. Any device that can communicate on a Modbus network can, in principle, read or write to any other device on it. This becomes a significant concern as more Modbus networks connect to broader IT infrastructure through IIoT initiatives, echoing the broader OT vs IT security challenges common across industrial environments.
Limited Data Types and Addressing
Modbus’s simple register model works well for basic values. However, it becomes awkward for more complex data structures, requiring workarounds — like splitting larger values across multiple registers — that newer protocols handle more elegantly.
No Built-In Device Discovery
Unlike some modern protocols, Modbus doesn’t include a standardized way for a master to automatically discover what slave devices exist on a network. Instead, configuration typically requires manually specifying device addresses and register maps in advance.
Limited Data Throughput
Especially in its serial RTU form, Modbus’s bandwidth stays modest by modern standards. This proves adequate for the relatively low-frequency polling common in traditional industrial control. However, it becomes a constraint for applications generating high-volume data streams.
Securing Modbus in Modern IIoT Deployments
Modbus itself provides no native security. Therefore, organizations connecting Modbus networks to broader IT systems typically add security at the network layer instead. This includes network segmentation, firewalls that restrict Modbus traffic to authorized devices only, and gateway devices that translate Modbus data into more modern, secured protocols before it reaches broader IT or cloud systems. This approach lets organizations keep using existing Modbus-speaking equipment while still meeting modern cybersecurity expectations.
Modbus vs Modern Industrial Protocols
Compared to newer protocols like OPC UA (covered in our PLC and industrial automation guide), Modbus lacks built-in security. It also has a more limited data model, and it doesn’t include the rich metadata and semantic descriptions that make modern protocols easier to integrate with higher-level IT systems. Even so, Modbus’s simplicity, wide device support, and minimal resource requirements mean it remains the right choice for many straightforward field-level communication needs, particularly with existing equipment.
Conclusion
Modbus endures not because it’s the most capable industrial protocol available today. Rather, it solved a real problem simply enough, decades ago, that the industry never fully moved past it. For anyone working with industrial equipment or IIoT integration, understanding Modbus remains practically useful. A huge share of existing field devices still speak it. Knowing its strengths and very real limitations, especially around security, is essential for building systems that bridge these older devices safely into modern, connected environments.
For a broader view of the systems Modbus typically connects to, our guide on Industrial Automation and PLC covers where Modbus fits into the larger control and automation stack.
